Tonnen- und Kabelleger DORNBUSCH I
buoy- and cable-layer DORNBUSCH I
Modellmaßstab 1:100
model-scale 1:100
Vorgänger der DORNBUSCH II vom DDR-SHD (Seehydrographischer Dienst), Baujahr 1964. Typenplan ohne herausgezeichnete Details. Spantenriß zusätzlich im M 1:50. Das Modell sollte in diesem Maßstab 7,54 kg schwer sein. Maße des Modellrumpfes im M 1: 100: 598 x 98 x 34 (Tiefgang) mm), Modellgewicht im M 1:100: 0,94 kg, 1 Propeller mit Aktivruder, 1 Planbogen.
Forerunner of the DORNBUSCH II of the DDR-SHD, built in 1964. Simply type-plan, without drawn details. The body plan is also drawn on scale 1:50 (1:50 = 7,54 kg model-weight), model-hull-size: 598 x 98 x 34 (draught) mm, model-weight in 1:100: 0,94 kg, 1 propeller with active-rudder, 1 sheet.

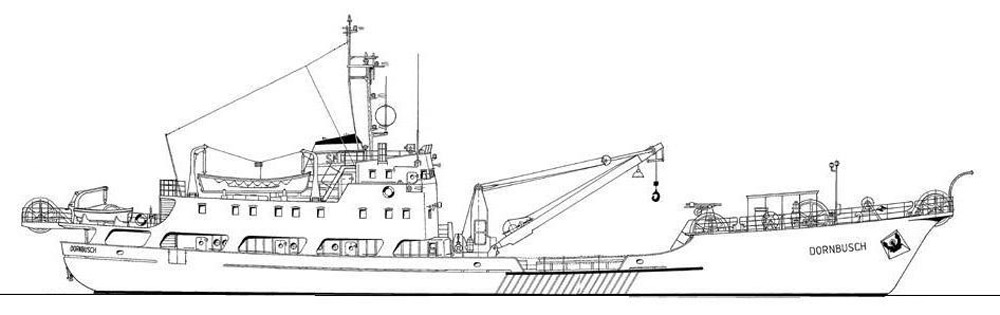

Planausschnitt / plan section

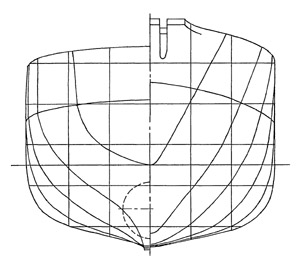

Spantenriß /body plan
